Flat Top Shelter
Products Home Slope Top Shelter Flat Top Shelter Safe Room Product WarrantyOur shelters are designed and constructed with your protection in mind. They are reinforced with fiber as well as steel rebar, and they are poured with a minimum of 6,000 psi concrete and weigh in at 12,000+ pounds. They meet or exceed FEMA (Federal Emergency Management Agency) guidelines.
Specifications (inside dimensions)
- 5ft x 7ft long x 6ft 1in tall (fits 6 to 8)
The following accessories are included at no extra charge:
- Double handrail on steps
- Gas operated door closer
- 8" wind turbine for ventilation
- 6" vent
- Primed steel door with hydraulic closer
- Steel steps treads 6 inches deep by 24 inches wide
- 10 year warranty
The steel mold used to shape the bottom shell of the shelter. Concrete rated at 5000 pounds per square inch is poured into the mold and then vibrated to reduce air bubbles and voids.
A bottom section out of the mold. The top and bottom sections are poured separately and then bolted together with steel straps. A waterproof mastic is used to seal the keyway/seam joining the two sections to prevent any water leakage.
A completed shelter with primed steel door and turbine ventilator. Shelters are heated in the building to assure proper curing of concrete.

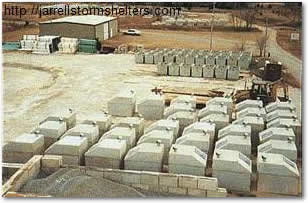

A view of the factory from the air. Notice the number of completed shelters waiting for shipment. one of these could save your life in severe weather!
Limitation of Liability (Design)
Jarrell Storm Shelters can not predict actual performance of any structure for tornadoes or severe storms, but this design incorporates current knowledge to best protect the occupants. The engineer and fabricator shall not be obligated or liable for actual, incidental, consequential, or other damages to users of this shelter for any purpose, including those installing or maintaining thereof.
